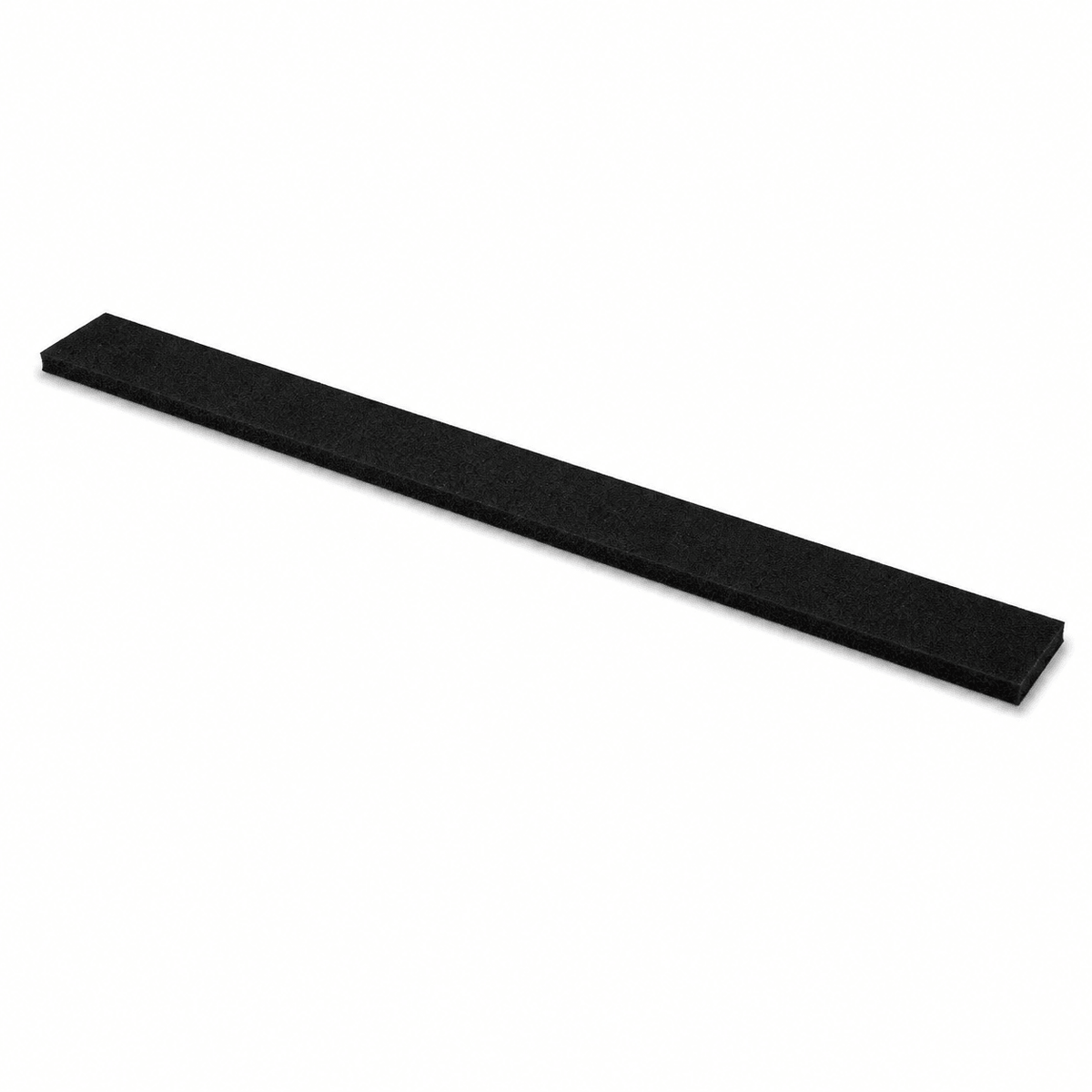

K-9 Dryer Universal Body Gasket

Replace a worn, compressed, or damaged motor seal with a genuine K-9 Dryer Universal Body Gasket. This OEM replacement foam gasket installs inside the main dryer housing around the motor assembly, helping create the proper seal and securely position the motor during operation.

The body gasket also helps absorb motor vibration while reducing air leakage around the motor assembly. Designed for broad compatibility, this replacement gasket fits all Electric Cleaner Company models.

Compatible K-9 Dryer Models

The K-9 Universal Body Gasket is designed to fit inside all Electric Cleaner Company models, including popular K-9 professional dog grooming dryers:

• Mini K-9
• K-9 Fluffer
• K-9 I
• K-9 II
• K-9 II Variable Speed
• K-9 III
• K-9 III Variable Speed

The gasket may also fit additional Electric Cleaner Company equipment. Always inspect the existing gasket and dryer configuration before installation.

What Does the K-9 Dryer Body Gasket Do?

The body gasket sits inside the main dryer housing around the motor or motors. Although simple in appearance, it performs several important functions within the dryer.

• Helps create an airtight seal around the motor assembly
• Reduces unwanted air leakage inside the housing
• Helps hold the motor securely in position
• Absorbs motor vibration
• Supports efficient airflow through the dryer

A properly fitted body gasket is particularly important when installing or replacing a dryer motor because an old gasket may be compressed, damaged, or deteriorated during disassembly.

When Should the Body Gasket Be Replaced?

Inspect the body gasket whenever the dryer is opened for motor service or other internal repairs. Replacement may be appropriate if you notice:

• Torn or deteriorated foam
• Permanent compression or flattening
• Missing sections of gasket material
• Gasket separating from the dryer housing
• Loose or deteriorated adhesive
• Damage that prevents the motor from seating properly

If you are already replacing a K-9 dryer motor, inspecting the body gasket at the same time can help prevent having to reopen the dryer later.

Gasket Glue Is Recommended for Installation

Gasket adhesive should be used when installing the K-9 Universal Body Gasket. Remove the old gasket and remaining adhesive before installing the replacement.

Apply gasket glue where the previous gasket was fitted, position the new body gasket correctly, and allow the adhesive to cure for at least 24 hours before reinstalling the motor and operating the dryer.

K-9 recommends approximately 2 oz of adhesive per Body Gasket. Shop the K-9 Dryer Gasket Glue - 5 oz to complete the installation.

Body Gasket vs. Cover Gasket

K-9 dryers use separate gaskets for different areas of the machine.

The Body Gasket shown here is the wider foam gasket installed inside the main dryer housing around the motor assembly. It helps seal and secure the motor while dampening vibration.

The K-9 Dryer Universal Cover Gasket is the thinner foam gasket installed inside the removable dryer end cap. If your dryer is already disassembled for repair, inspect both gaskets and replace any foam that has become torn, compressed, loose, or deteriorated.

K-9 Body Gasket Installation

1. Unplug the dryer before beginning any service.
2. Open the dryer housing and remove the components necessary to access the body gasket.
3. Remove the old body gasket and remaining adhesive.
4. Clean the gasket mounting area as needed.
5. Apply gasket glue where the original gasket was installed.
6. Position the new body gasket correctly inside the housing.
7. Allow the gasket glue to cure for at least 24 hours.
8. Reinstall the motor and reassemble the dryer.

Replacing the body gasket requires access to internal dryer components. If you are uncomfortable disassembling or servicing your dryer, installation should be completed by someone experienced with professional grooming equipment.

Complete Your K-9 Dryer Motor Repair

If you're replacing the body gasket as part of a motor repair, consider inspecting the K-9 Dryer Replacement Motor with Turbine - 923, K-9 Dryer Carbon Brush Set for 923 Motor, and K-9 Dryer Motor Brush Clips with Leads while the dryer is disassembled.

Browse our complete selection of K-9 Dryer Parts for genuine motors, brushes, switches, power cords, gaskets, and other OEM replacement components.

Need help identifying a repair part? Read our K-9 Dryer Replacement Parts Guide for common symptoms, maintenance information, and replacement-part guidance.
