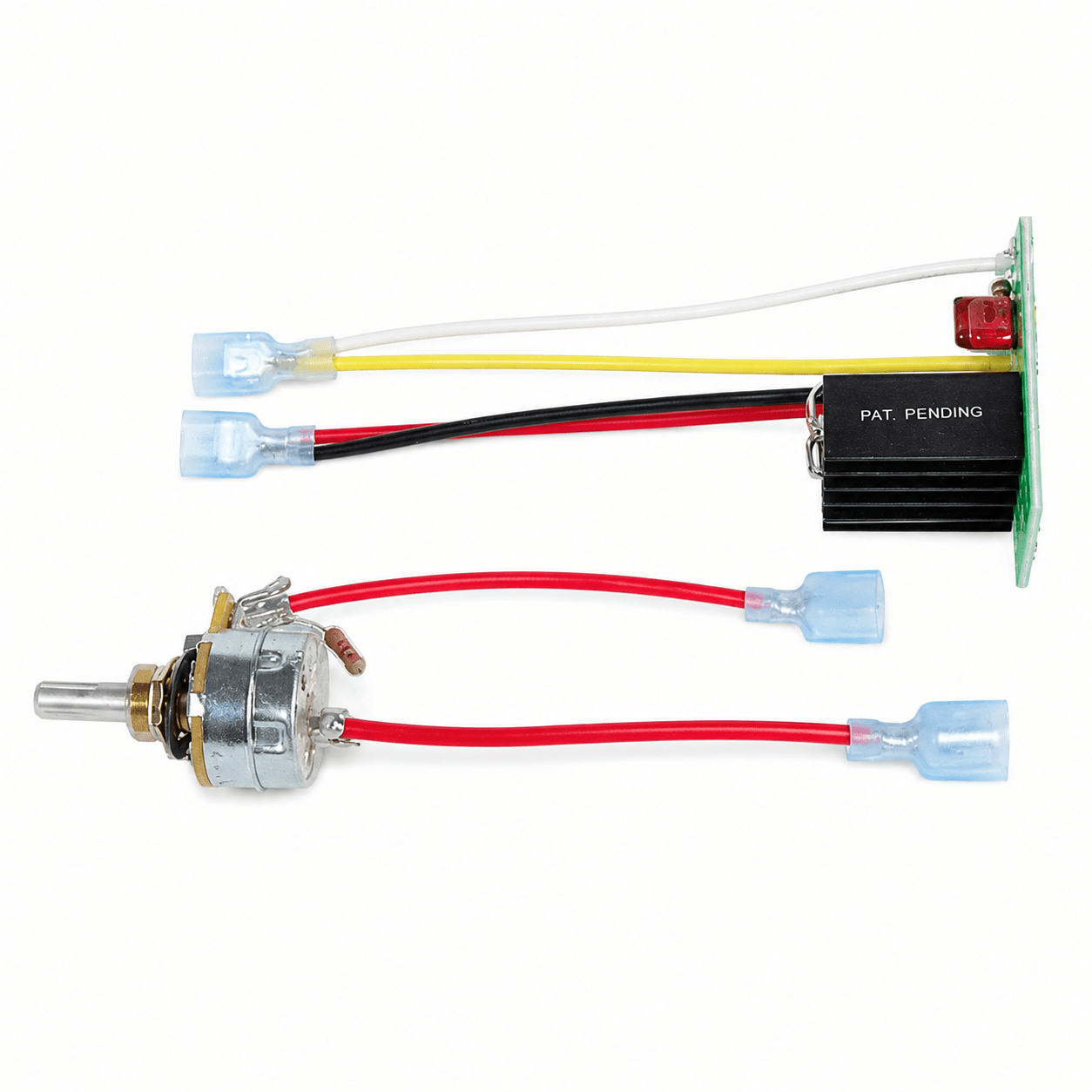

K-9 Variable Speed Switch & Circuit Board for K-9 Variable Speed Dryers

K-9 Variable Speed Switch & Circuit Board for K-9 Variable Speed Dryers

Regular price $67.25
Regular price Sale price $67.25
Sale Sold out
Shipping calculated at checkout.
Quantity

Fits these K-9 dryer models:

  • K-9 Fluffer
  • K-9 II Variable Speed
  • K-9 III Variable Speed

Final sale: No returns, exchanges, or refunds. Report damaged or incomplete orders within 48 hours. View policies.

🚚 Ships via UPS Ground

  • Icon of a dog with a comb and scissors on a white backgroundCommercial Grade
  • Manufacturer Direct FulfillmentDirect Shipping
  • Icon of a box, circular gear, and gear with arrows indicating rotation on a white backgroundClear Lead Times

Restore variable-speed control in a compatible K-9 II or K-9 III Variable Speed Dog Dryer with the genuine K-9 Variable Speed Switch and Circuit Board. This 110-volt replacement assembly includes the matched switch and circuit board required for proper variable-speed operation.

The switch and circuit board are mated components and must be replaced together. Replacing only one component can cause the dryer to malfunction.

Important: Select the same wire color, blue or red, that is currently installed in your dryer before ordering.



Compatible K-9 Dryer Models

This replacement switch and circuit board assembly is designed for compatible 110-volt versions of the following dryers:

  • K-9 II Variable Speed Dog Dryer
  • K-9 III Variable Speed Dog Dryer

This assembly is not the replacement part for the K-9 Fluffer Variable Speed Dryer. It is also not a conversion kit for a standard two-switch dryer.

If you want to convert a compatible two-switch K-9 II or K-9 III dryer to variable-speed operation, use the K-9 Variable Speed Conversion Kit.



Choose the Correct Wire Color

This replacement assembly is available with blue wires or red wires. Inspect the switch and circuit board currently installed in your dryer and order the option with the same wire color.

Do not select a wire color based only on the dryer model. Match the replacement assembly to the wiring already installed in your specific dryer.



Matched Switch and Circuit Board Assembly

The variable-speed switch and circuit board work together as a matched pair. Both components are included and must be replaced together to ensure proper operation.

  • Genuine K-9 replacement assembly
  • Includes the variable-speed switch and circuit board
  • Available with blue or red wires
  • Provides adjustable control across the dryer's speed range
  • Designed for compatible 110-volt K-9 II and K-9 III Variable Speed dryers



Possible Signs of a Variable-Speed Control Problem

Possible symptoms of a variable-speed control problem may include:

  • Airflow no longer responds normally to the control knob
  • The dryer operates at only one speed
  • Speed adjustment becomes intermittent or inconsistent
  • The variable-speed function stops working

These symptoms can also result from other electrical, motor, wiring, or control problems. Diagnose the dryer properly before ordering replacement parts.



Installation and Electrical Safety

Replacing this assembly requires opening the dryer and working with internal electrical connections. Disconnect the dryer from power before inspection or service.

If you are not experienced with electrical equipment repair, have the part installed by a qualified service professional or contact Electric Cleaner Company for technical assistance. Wiring diagrams and detailed technical support should be requested directly from the manufacturer.



Product Specifications

  • Product: Variable Speed Switch and Circuit Board
  • Voltage: 110 volts
  • Available Wiring Options: Blue wires or red wires
  • Included Components: Matched switch and circuit board
  • Dimensions: 7 x 4 x 2 inches
  • Weight: 0.4 lb.
  • Application: Compatible K-9 II and K-9 III Variable Speed dryers



Keep Your K-9 Dryer Performing Its Best

Browse our complete selection of K-9 Dryer Parts for motors, carbon brushes, switches, circuit boards, power cords, filters, gaskets, and other genuine replacement components.



K-9 Variable Speed Switch and Circuit Board FAQs

Which K-9 dryers are compatible with this switch and circuit board?

This 110-volt replacement assembly is designed for compatible K-9 II Variable Speed and K-9 III Variable Speed dog dryers. It is not the replacement assembly for the K-9 Fluffer Variable Speed Dryer.

Does this replacement include both the switch and circuit board?

Yes. It includes the matched variable-speed switch and circuit board. The manufacturer states that both components must be replaced together to ensure proper operation.

Should I order blue wires or red wires?

Inspect the assembly currently installed in your dryer and order the replacement with the same wire color. Do not select the wire color based only on the dryer model.

Will this convert a standard two-switch dryer to variable speed?

No. This is a replacement assembly for an existing compatible variable-speed system. Converting a compatible two-switch K-9 II or K-9 III requires the separate K-9 Variable Speed Conversion Kit.

What symptoms may indicate a variable-speed control problem?

Possible symptoms include airflow that does not respond normally to the control knob, operation at only one speed, inconsistent adjustment, or failure of the variable-speed function. These symptoms can have other causes, so proper diagnosis is recommended before ordering the assembly.

Can I replace only the switch or only the circuit board?

No. The switch and circuit board are matched components and must be replaced together. Replacing only one can cause equipment malfunction.

Specifications & Features

  • Genuine K-9 OEM Replacement Part
  • Fits K-9 II & K-9 III Variable Speed Dryers
  • Includes Variable Speed Switch & Circuit Board
  • Direct Replacement Assembly
  • For Variable Speed Models Only
  • Manufacturer Warranty
